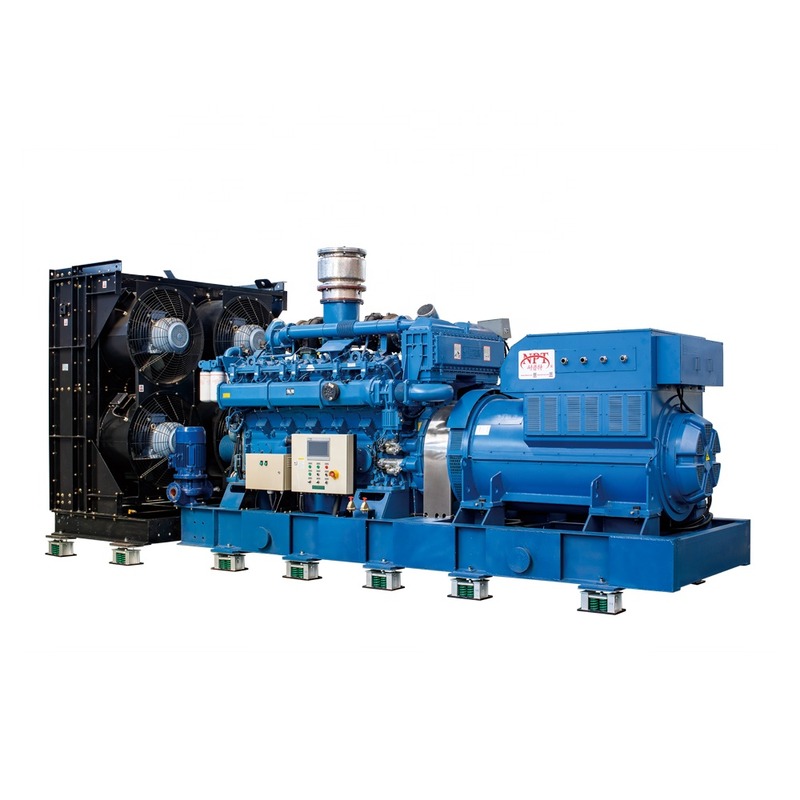

Power Plant 1000 KVA 800KW Biomass Gas Generator Set Price 800GFT-J

1 Set
MOQ
$240,000.00(>=1 Sets)
preço
Power Plant 1000 KVA 800KW Biomass Gas Generator Set Price 800GFT-J
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Warranty: 3months-1year, 1 Year
Certificação: CE;ISO
Model Number: 800GFT-J
Rated Voltage: 400/230V
Rated Current: 1440A
Speed: 1000/1200RMP
Frequency: 50/60HZ
Fuel type: Wood Gas / Landfill Gas/Biomass
Alternator: MBH( Germany)
Engine brand: YUCHAI
Type: Open or Containerized Type
Color: Customers' Requirements
Silent: 70dB
Controler: Smartgen
Installation: Free Charge
Product name: 800KW biomass gas genetator set
Informação básica
Certificação: CE;ISO
Model Number: 800GFT-J
Condições de Pagamento e Envio
Packaging Details: PE film and wooden cases are both available for packing.
Supply Ability: 1 Set/Sets per Month 800kw wood gas generator with Gasification
Descrição de produto
Products Description
product name
800kW Biomass Gas Generator Set
Fuel Type
Biomass Gas
Generator set Model
800GFT - J
Exciting Method
integrated
Rated Power ( kW/kVA )
800/1000
Rated Current ( A )
1440
Rated Voltage ( V )
230/400
Rated Frequency ( Hz )
50/60
Rated Power Factor
0.8 LAG
No Load Voltage Range
95% ~ 105%
Stable Voltage Regulation Rate
≤±1%
Instantaneous Voltage Regulation Rate
≤-15% ~ +20%
Voltage Recover Time
≤3 S
Voltage Fluctuation Rate
≤±0.5%
Instantaneous Frequency Regulation Rate
≤±10%
Frequency Stabilization Time
≤5 S
Line-voltage Waveform Sinusoidal Distortion Rate
≤2.5%
Overall Dimension ( L*W*H ) ( mm )
5400*1650*3256
Net Weight ( kg )
17700
Noise dB ( A )
＜93
Overhaul Cycle ( h )
25000
Engine
Model
NY792D85TL ( AVL Technology )
Type
V-type, 4 strokes, electric control ignition, pre-mixed and turbocharged inter-cooled lean burn.
Cylinder Number
12
Bore*Stroke ( mm )
200*210
Total Displacement ( L )
79.168
Rated Power ( kW )
850
Rated Speed ( r/min )
1500/1800
Fuel Type
Biomass gas
Control panel
Model
800KZY, NPT brand
Display type
Multi-function LCD display
Control Module
HGM9320 or HGM9510, Smartgen brand
Operation Language
English
Alternator
Model
XN6E
Brand
XN ( Xingnuo )
Shaft
Single bearing
Rated Power ( kW/kVA )
800/1000
Enclosure Protection
IP23
Efficiency ( % )
94.2

App monitoring example

Intelligent monitoring function of multi machine parallel connection / grid connection The intelligent controller is used in the generator set, which can realize real-time automatic parallel / grid connection function, and can monitor and operate the generator set locally and remotely. Users can also monitor and operate the generator set through the cloud. This function greatly facilitates the operation of customers, and provides customers with portable.
Recommend Products
10-1000 kW
NATURAL GAS GENERATOR
10-1000 kW
BIOGAS GENERATOR
10-1000 kW
BIOMASS GAS GENERATOR
Customer Projects

Turkey 400kW Biomass

Chile 350kW Natural Gas Generator

Vietnam 500kW Biogas Generator

Product packaging
Certifications
Company Profile

Company Profile

Weifang Naipute Gas Genset Co., Ltd. was established in 2008. Office is located in Headquarter Base in Weifang city, Shandong province and there is convenient traffic and pleasant environment around. Factory is located in Advanced Manufacturing Industry Park with government’s support and good industry atmosphere. Since NPT brand has been set up, main products are 10kW-1000kW gas generator sets, including natural gas generator set, biogas generator set, oil field gas generator set, coal-bed gas generator set, lpg gas generator set, biomass gas generator set etc. and NPT aims at utilizing clean energy, protecting environment and reducing operating costs. NPT company’s R&D group and management group have rich experience on R&D, production and managements. Over the years, NPT has built a professional team with excellent technology and great character.
FAQ
1. What is the warranty ? The standard warranty is 12months or 1500 running hours whichever occurred first. Any damaged parts during warranty period can be shipped free by express to you. And we will offer life time technological support and trouble shooting service. 2. Which fields or what's the application of your generator? According to different power, the natural gas generator, biogas generator,biomass generator and LPG generator can be used in residential, industrial, animal husbandry,marine, generating, power plant, etc. If any special application project, welcome to contact us firstly. 3. What's the power range you can make for generator? 10-1000 kW is normal choice for customers. For other customized power, welcome to contact us. 4. Will you test your generators or engines before shipped? Yes, every product will be tested individually in our test lab and test report and test video can be provided. 5. What's the lead time and delivery time for your generator? Usually 15-35 days for lead time. Delivery time is according to your choice of shipping method. 6. What's the payment method do you accept? We accept L/C, TT, etc. If you have special requirement, welcome to contact us. 7. Are you manufacturer? Yes, we are both manufacturer and foreign trade company, cooperating with many famous brand suppliers. Welcome to visit our factory.
