Casa /Produtos/Gerador industrial do gás natural/15kva natural gas generator YDNY-12

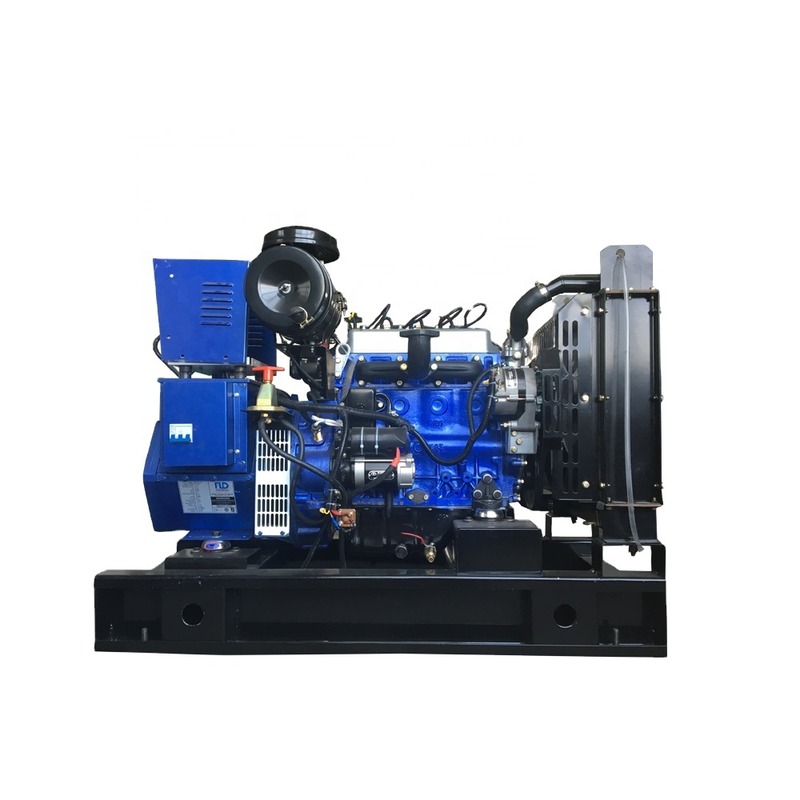

15kva natural gas generator YDNY-12

1 Set
MOQ
$5,550.00(1 - 1 Sets) $5,500.00(2 - 4 Sets) $5,000.00(>=5 Sets)
preço
15kva natural gas generator YDNY-12
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Warranty: 1YEARS, One Year Or 1500 Running Hours
Certificação: CE
Model Number: YDNY-12
Rated Voltage: 400/380/220/230V
Rated Current: 21.6A
Speed: 1500/1800rpm
Frequency: 50/60HZ
Product name: 15kva natural gas generator
Fuel: Natural gas
Certificate: CE ISO9001 ISO14001 ISO18001
Alternator: 100% copper wire brushless
E-Throttle Brand: with BOSCH
Gas Mixer Brand: IMPCO
Regulator Brand: MADAS
Spark Plug Brand: TORCH
Water Temperature brand: with BOSCH
Informação básica
Certificação: CE, CE ISO9001 ISO14001 ISO18001
Model Number: YDNY-12
Condições de Pagamento e Envio
Packaging Details: For open type, packing with plywood case; For silent type, packing with bubble and stretch film for 15kva natural gas generator
Descrição de produto
Product Description
15kva Natural gas generator



Generator
Genset Model
YDNY-12
Rated Power (kW/kVA)
12Kw/15Kva
Rated Current (A)
21.6
Dimension (mm)
1450*700*1100
Gross Weight (kg)
510








Natural gas engine
Brand
YTO YANGDONG
Model
YD4M1D
Configuration
Water-cooled, 4-stroke, 4 cylinder in-line
Rated Power (kW/kVA)
15Kw/18.75Kva
Rated Speed (rpm)
1500
Cylinder No.
4
Bore*Stroke (mm)
80*90
Oil Consumption (g/kw.h)
1
Gas Consumption (Nm3/h)
3.6
Starting method
24V DC electric





Alternator
Brand
FARRAND
Model
FLD-12
Rated Power (kW/kVA)
12/15
Efficiency
92.50%
Voltage Regulation
≦±1
Voltage Regulation
Brushles, Self Excitation
Insulation Class
H





Control System
Brand
SMARTGEN
Model
HGM6110
Working Voltage
DC8.0V to DC35.0V, continuous
Overall Dimensions (mm)
197*152*47
Panel Cutout (mm)
186*141
Working Condition
Temperature: (-25~70)ºC; Humidity: (20~90)%
Weight
0.56kg

Requirments for natural gas

1.Methane should be at least 85%

2.The natural gas temperature should be between 0-60 ℃
3. No inpurity should be in the gas. Water in the gas should be less than 20g/Nm3.
4. Heat value should be at least 8500kcal/m3, if less than this value, the power of the engine will be declined.
5. Gas pressure should be 3-100KPa, if the pressure is less than 3KPa, booster fan is necessary.
6.The gas should be dehydrated and desulfurated. Make sure that there is no liquid in the gas. H2S<200mg/Nm3
Detailed Images



Control System

Name: Electronic throttle

Brand: BOSCH

Original: Germany

Control the supply of gas flow




Mixed system

Name: MIXER
Brand: IMPCO
Original: USA
Mix gas and air for combustion



Regulator System

Name: Regulator
Brand: MADAS
Original: Italian
Regulate the pressure of gas supply



Central control system

Name: ECU
Brand: YDN
Original: China
Central control system of gas generator, computer of gas generator, ignition control system, speed control system, hybrid system and so on.

Related Products

Forword natural gas generator

ISUZU Technology

Ricardo natural gas generator

China cheap gas generator

Lovol natural gas generator


>>Welcome to contact us<<
Our Factory
Case show
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
1450(L) * 700 (W) * 1100 (D)
Weight
0.52 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ
1. who are we?
We are based in Shandong, China, start from 2009,sell to Domestic Market(00.00%),Southeast Asia(00.00%),Eastern
Europe(00.00%),Africa(00.00%),Central America(00.00%),Mid East(00.00%),Northern Europe(00.00%),South Asia(00.00%). There are total
about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Diesel and Gas Engine,Diesel and Gas Generator

4. why should you buy from us not from other suppliers?
We have been in the generator industry for 14 years and have an experienced research and marketing team. The biogas and natural
gas generators are getting more and more popular.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Escrow;
Language Spoken:English,Chinese,Arabic
